Large Particle Mineral Color Sorter Single Layer Colour Sorting Machine
Quick Detail:
| Model | ML4 |
| Layer No. | Single |
| Output(T/H) | 20-50 |
| Carryover rate | >30:1 |
| Accuracy (%) | >99% |
| Voltage(v/HZ) | 220V/50HZ |
| Power(KW) | 3.8 |
| Air pressure(Mpa) | 0.4-0.8 |
| Consumption(L/min) | 6800 |
| Dimension(mm) | 2927*2883*1620mm |
Description:
Image processing system
Applying the international advanced full color scanning technology, DSP+FPGA processing technology, as well as complex algorithm of multiple modes combined with color and space, this system can provide the function of color & shape-based sorting depending on the difference of materials.
Color image acquisition system
Using high-definition color CCD(5200px) camera image acquisition system to achieve material(RGB) red, green and blue three color information acquiring, depth recognition tiny fine color sorter can choose other impurities.
Operating system
With intelligent operating platform, the system can be mastered and operated easily, turning the intelligent communication between human and machine into reality and eliminating all your concerns about operating.
Cloud object link system
Autonomous cloud control, cloud computing technology, the realization of online operations, online monitoring, online services, free upgrades.
Intelligent magnetic control high frequency electromagnetic valve
Independent development of color choose intelligent magnetic control high frequency electromagnetic valve, create a leading technology. Compared with the industry average electromagnetic valve to save power consumption about 70%, save gas consumption about 20%. Application of new high anti-wear material matching equipment used, to ensure that life, to create the best production efficiency.
Custom sorting structure
As per the different requirement of the mineral features, SORTDEK launched variety types of color sorters.
New type of LED light source system
Using intelligent LED optical system design, intelligent flexible light-operated switch background light color, and uses the condenser unit to prevent LED astigmatism.
Automatic dust cleaning system
Add automatic dust removal device and automatic spray cleaning system. Can be customized to meet special mineral, assure the stability of the separation effect.
Applications:
Sorting variety type and size of stone like quartz, Calcium carbonate, feldspar, Cryolite.
Specifications:
| Model | Layer No. | Output(T/H) | Carryover rate | Accuary | Voltage | Power(KW) | Air pressure (Mpa) | Air Consumption (L/Min) | Weight(kg) |
| MS2-W | Single | 1-3cm | 6-10 | >30:1 | >99% | 220V/50HZ | 1.6-2.5 | 0.6-0.8 | 2400 | 1600 |
| 3-5cm | 8-13 |
| MD2-W | double | 1-3cm | 6-12 | >40:1 | >99% | 220V/50HZ | 2.0-4.0 | 0.6-0.8 | 3800 | 2500 |
| 3-5cm | 8-15 |
| MS2 | Single | 1-4cm | 8-12 | >22:1 | >99% | 220V/50HZ | 1.6-2.5 | 0.6-0.8 | 2400 | 1250 |
| 4-8mesh | 4-8 |
| 8-16mesh | 3-6 |
| 16-26mesh | 1-2 |
| MD2 | double | 1-4cm | 8-12 | >30:1 | >99% | 220V/50HZ | 2.0-4.0 | 0.6-0.8 | 3800 | 1850 |
| 4-8mesh | 4-8 |
| 8-16mesh | 3-6 |
| 16-26mesh | 1-2 |
Competitive Advantage:
Solve the tiny mineral separation process, ore and crawler problems such as caking. Choose don’t wide ranging from 26 mesh to 120 mesh fine are particles.
Product Tags:
|
|

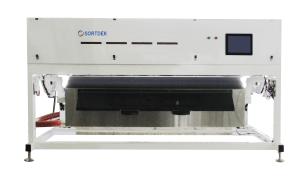

Large Particle Mineral Color Sorter Single Layer Colour Sorting Machine Images
|
